40-6130

2枚刃エンドミル 40-6130

  • 高硬度鋼用
  • 底刃センターカット
  • 高剛性
  • ロングネック(円筒型)
  • 右刃・右ねじれ(30°)
  • TA-Xコート
  • φ0.2-φ6mm
  • MMP

外形寸法

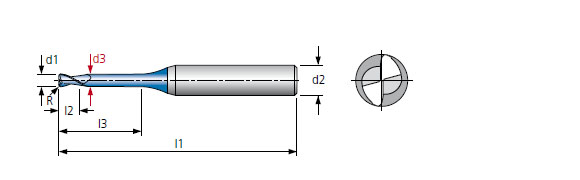

40-6130 外形寸法図

被削材料

40-613040-6130
アルミニウムステンレス < 800 N/mm2適合
アルミニウム > 9%Siステンレス > 800 N/mm2適合
スチール < 800 N/mm2適合鋳鉄最適
スチール < 1200 N/mm2最適ダクタイル鋳鉄最適
スチール < 1600 N/mm2最適高耐熱合金
スチール < 55HRC最適チタン
スチール < 60HRC最適非鉄金属・銅合金
スチール < 65HRC複合材・グラファイト

40-6130 ラインアップ

*40-6130-刃径/R(d1/R)-ネック長さ(l3)というように御指定ください 単位(mm)
刃径/R(d1/R)刃長(l2)ネック長さ(l3)ネック径(d3)全長(l1)シャンク径(d2)0.5°1.0°1.5°2.0°2.5°3.0°
0.2/0.050.30.50.184541.121.31.471.641.821.99
0.2/0.050.310.184541.71.922.132.342.532.73
0.2/0.050.31.50.184542.272.532.7733.223.42
0.3/0.050.4510.284541.71.922.132.342.532.73
0.3/0.050.4520.284542.833.133.393.643.874.1
0.3/0.050.4530.284543.944.294.64.885.145.39
0.4/0.10.620.374542.893.173.433.663.894.11
0.4/0.10.630.374543.994.334.634.95.165.4
0.4/0.10.640.374545.085.475.816.116.396.65
0.5/0.10.720.4545433.263.513.743.964.17
0.5/0.10.740.454545.185.545.876.166.446.7
0.5/0.10.760.454547.327.788.168.58.829.11
0.5/0.10.780.454549.469.9810.4110.7911.1411.47
0.6/0.10.920.5545433.263.513.743.964.17
0.6/0.10.940.554545.185.545.876.166.446.7
0.6/0.10.960.554547.327.788.168.58.829.11
0.6/0.10.980.554549.469.9810.4110.7911.1411.47
0.6/0.10.9100.5545411.5812.1612.6313.0513.4313.78
0.7/0.1120.6545433.263.513.743.964.17
0.7/0.1140.654545.185.545.876.166.446.7
0.7/0.1160.654547.327.788.168.58.829.11
0.7/0.1180.654549.469.9810.4110.7911.1411.47
0.7/0.11100.6545411.5812.1612.6313.0513.4313.78
0.8/0.21.240.754545.175.535.856.146.426.67
0.8/0.21.260.754547.327.778.158.498.89.1
0.8/0.21.280.754549.459.9710.410.7811.1311.45
0.8/0.21.2100.7545411.5712.1512.6213.0413.4213.77
0.8/0.21.2120.7545413.6814.3114.8315.2715.6816.05
0.9/0.21.3560.854547.327.778.158.498.89.1
0.9/0.21.3580.854549.459.9710.410.7811.1311.45
0.9/0.21.35100.8545411.5712.1512.6213.0413.4213.77
0.9/0.21.35150.8550416.8417.5418.118.5919.0319.43
1/0.21.560.954547.327.778.158.498.89.1
1/0.21.580.954549.459.9710.410.7811.1311.45
1/0.21.5100.9545411.5712.1512.6213.0413.4213.77
1/0.21.5120.9545413.6814.3114.8315.2715.6816.05
1/0.21.5140.9550415.7916.4717.0117.4917.9218.3
1/0.21.5160.9550417.8918.6119.1919.6920.1420.54
1.2/0.21.861.154547.327.778.158.498.89.1
1.2/0.21.881.154549.459.9710.410.7811.1311.45
1.2/0.21.8101.1545411.5712.1512.6213.0413.4213.77
1.2/0.21.8121.1545413.6814.3114.8315.2715.6816.05
1.4/0.22.161.354547.327.778.158.498.89.1
1.4/0.22.181.354549.459.9710.410.7811.1311.45
1.4/0.22.1101.3545411.5712.1512.6213.0413.4213.77
1.4/0.22.1121.3545413.6814.3114.8315.2715.6816.05
1.4/0.22.1141.3550415.7916.4717.0117.4917.9218.3
1.4/0.22.1161.3550417.8918.6119.1919.6920.1420.54
1.5/0.22.361.454547.327.778.158.498.89.1
1.5/0.22.381.454549.459.9710.410.7811.1311.45
1.5/0.22.3101.4545411.5712.1512.6213.0413.4213.77
1.5/0.22.3121.4545413.6814.3114.8315.2715.6816.05
1.5/0.22.3141.4550415.7916.4717.0117.4917.9218.3
1.5/0.22.3161.4550417.8918.6119.1919.6920.1420.54
1.5/0.22.3181.4555419.9820.7421.3521.8822.3422.76
1.5/0.22.3201.4555422.0722.8723.5124.0524.54-
1.6/0.22.461.554547.327.778.158.498.89.1
1.6/0.22.481.554549.459.9710.410.7811.1311.45
1.6/0.22.4101.5545411.5712.1512.6213.0413.4213.77
1.6/0.22.4121.5545413.6814.3114.8315.2715.6816.05
1.6/0.22.4141.5550415.7916.4717.0117.4917.9218.3
1.6/0.22.4161.5550417.8918.6119.1919.6920.1420.54
1.6/0.22.4181.5555419.9820.7421.3521.8822.3422.76
1.6/0.22.4201.5555422.0722.8723.5124.0524.54-
1.8/0.22.761.754547.327.778.158.498.89.1
1.8/0.22.781.754549.459.9710.410.7811.1311.45
1.8/0.22.7101.7545411.5712.1512.6213.0413.4213.77
1.8/0.22.7121.7545413.6814.3114.8315.2715.6816.05
1.8/0.22.7141.7550415.7916.4717.0117.4917.9218.3
1.8/0.22.7161.7550417.8918.6119.1919.6920.1420.54
1.8/0.22.7181.7555419.9820.7421.3521.8822.34-
1.8/0.22.7201.7555422.0722.8723.5124.0524.54-
2/0.2361.954547.327.778.158.498.89.1
2/0.2381.954549.459.9710.410.7811.1311.45
2/0.23101.9545411.5712.1512.6213.0413.4213.77
2/0.23121.9545413.6814.3114.8315.2715.6816.05
2/0.23141.9550415.7916.4717.0117.4917.9218.3
2/0.23161.9550417.8918.6119.1919.6920.14-
2/0.23181.9555419.9820.7421.3521.8822.34-
2/0.23201.9555422.0722.8723.5124.05--
2/0.23251.9560427.2728.1628.86---
2/0.23301.9570432.4633.4334.18---
2/0.5361.954547.37.738.118.448.759.04
2/0.5381.954549.439.9410.3610.7411.0811.4
2/0.53101.9545411.5512.1212.591313.3813.72
2/0.53121.9545413.6714.2914.815.2415.6416.01
2/0.53141.9550415.7716.4416.9917.4617.8818.27
2/0.53161.9550417.8718.5919.1619.6620.1-
2/0.53181.9555419.9620.7221.3321.8522.31-
2/0.53201.9555422.0522.8523.4824.03--
2/0.53251.9560427.2628.1528.84---
2/0.53301.9570432.4533.4134.16---
2.5/0.253.782.44549.6210.0910.510.8711.2111.52
2.5/0.253.7102.445411.7312.2612.7213.1213.4913.83
2.5/0.253.7122.445413.8314.4214.9115.3515.74-
2.5/0.253.7142.450415.9216.5717.117.56--
2.5/0.253.7162.455418.0118.719.2619.75--
2.5/0.253.7182.455420.120.8321.42---
2.5/0.253.7202.460422.1822.9523.57---
2.5/0.253.7252.470427.3828.24----
2.5/0.253.7302.480432.5633.49----
3.0/0.24.582.854569.7710.2210.6110.9711.311.61
3.0/0.24.5102.8545611.8712.3812.8213.2113.5713.9
3.0/0.24.5122.8545613.9714.5315.0115.4315.8216.17
3.0/0.24.5142.8550616.0516.6717.1817.6318.0418.42
3.0/0.24.5162.8555618.1418.819.3519.8220.2620.65
3.0/0.24.5182.8555620.2220.9221.52222.4522.86
3.0/0.24.5202.8560622.323.0423.6524.1724.6425.07
3.0/0.24.5252.8565627.4828.3228.9929.5630.07-
3.0/0.24.5302.8580632.6533.5734.2934.91--
3.0/0.24.5352.8590637.8138.839.5740.22--
3.0/0.24.5402.8590642.9644.0144.83---
3.0/0.54.582.854569.7610.210.5810.9311.2511.56
3.0/0.54.5102.8545611.8612.3612.7913.1813.5313.86
3.0/0.54.5122.8545613.9514.5114.9815.415.7816.13
3.0/0.54.5142.8550616.0416.6517.1617.618.0118.38
3.0/0.54.5162.8555618.1318.7819.3219.820.2220.62
3.0/0.54.5182.8555620.2120.921.4821.9822.4222.83
3.0/0.54.5202.8560622.2923.0223.6324.1524.6125.04
3.0/0.54.5252.8565627.4728.328.9729.5430.04-
3.0/0.54.5302.8580632.6433.5534.2734.89--
3.0/0.54.5352.8590637.838.7839.5640.21--
3.0/0.54.5402.8590642.954444.81---
4.0/0.56123.8550613.9514.5114.9815.415.7816.13
4.0/0.56163.8560618.1318.7819.3219.820.22-
4.0/0.56203.8560622.2923.0223.6324.15--
4.0/0.56253.8570627.4728.328.97---
4.0/0.56303.8580632.6433.5534.27---
4.0/0.56353.8590637.838.78----
4.0/0.56403.8590642.9544----
4.0/0.56453.85100648.0949.2----
4.0/0.56503.85100653.2354.39----
5.0/0.57.5164.8560618.1318.7819.32---
5.0/0.57.5254.8570627.4728.3----
5.0/0.57.5354.8590637.838.78----
5.0/0.57.5434.85110645.9847.06----
6.0/0.58.5155.9656-5.23-----
6.0/0.58.5205.9656-5.2322.94----
6.0/0.58.5305.9756-5.2333.48----
6.0/0.58.5405.9906-5.2343.94----
6.0/0.58.5505.91106-5.2354.34----

上記ラインアップ表以外の径についてもお問合せください。
